TY-S Die Clamp
This clamp’s body can be rotated 360°.

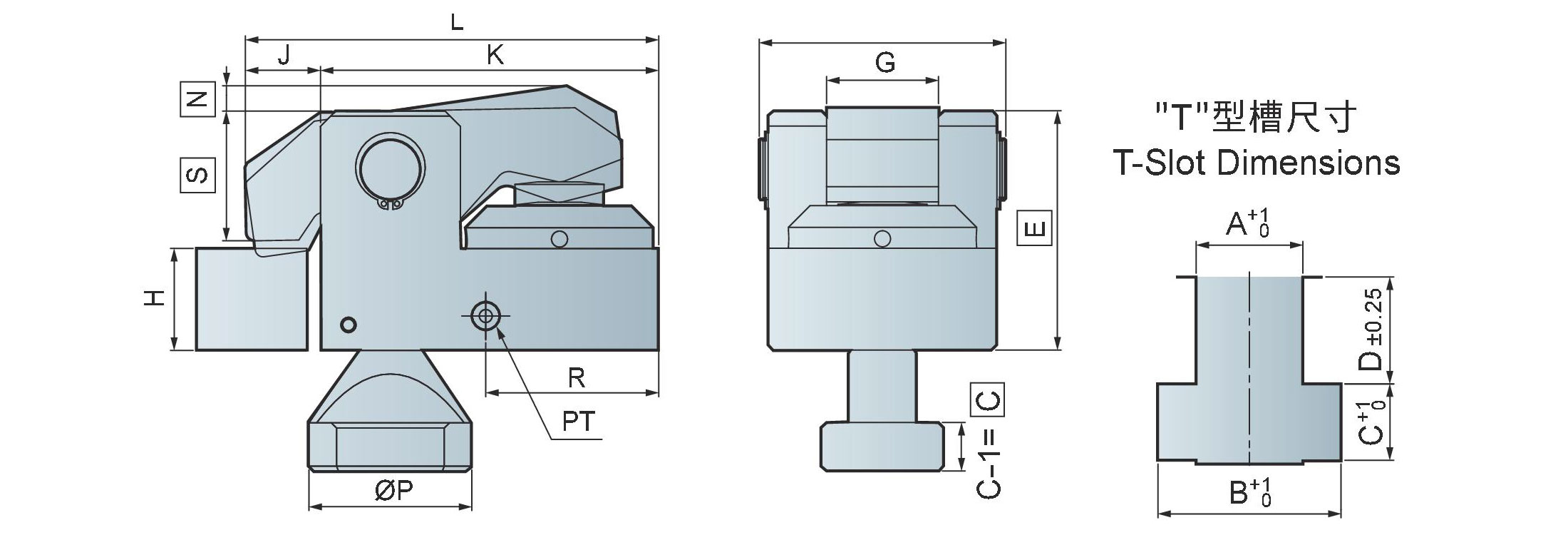

Specifications
| Model | min.E | F | G | J | K | L | max.N | ØP | R | min.S | PT | min.C | A | B | C | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TY-2S | 59 | 63 | 28 | 22 | 85 | 107 | 10 | 38 | 48 | 27 | 1/8 | 9.5 | 22 | 37 | 16 | 24 |
| TY-4S | 85 | 87 | 40 | 25 | 120 | 145 | 10 | 59 | 58 | 32 | 1/4 | 12 | 22 | 37 | 16 | 24 |
| TY-6S | 94 | 97 | 44 | 29.5 | 133 | 162.5 | 11 | 64 | 68 | 40 | 1/4 | 14 | 28 | 48 | 20 | 28 |
| TY-10S | 105 | 110 | 50 | 28 | 165 | 193 | 11 | 64 | 82 | 53 | 1/4 | 16.5 | 28 | 48 | 20 | 28 |
| TY-16S | 120 | 130 | 60 | 30 | 200 | 230 | 12 | 88 | 96 | 67 | 1/4 | 19 | 28 | 48 | 23 | 28 |
