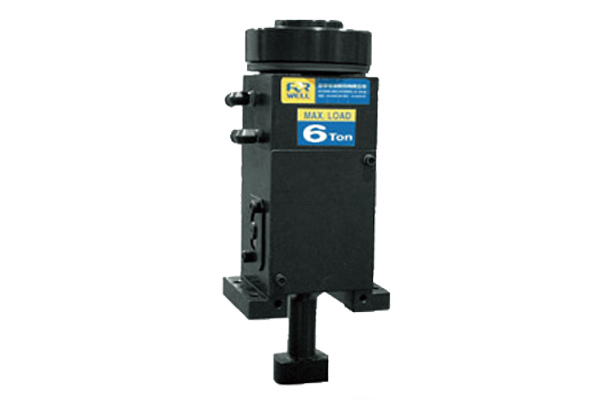

TS Swing Type Clamps
This system is hydraulically controlled and uses a swing motion to lock the dies or plates in place once it is positioned. It offers very secure clamping and is available in three different models.
Specifications
| Proof Pressure | 275kgf/cm2 |
| Working Pressure | 180kgf/cm2 |
| Working Temperature Range | -5~60°C |
| Hydraulic Fluid | ISO VG32-VG5656 |
| Microswitch Type | Z-15G-Q-22B |
| Type Of Contact | Single Pole Double Throw |
| Rating | AC125V,20A DC 30V,6A6A |

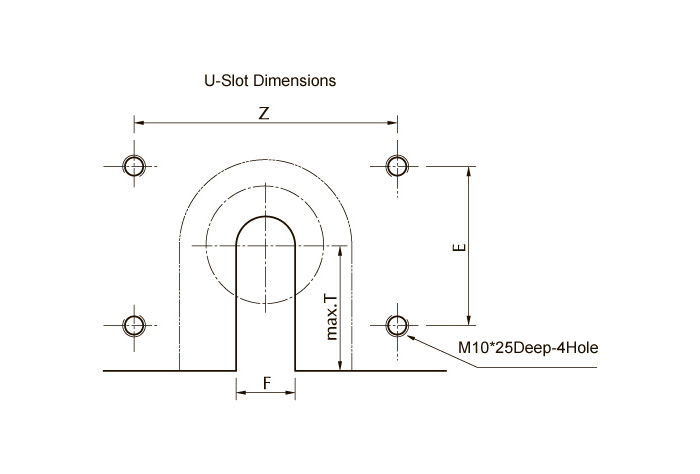

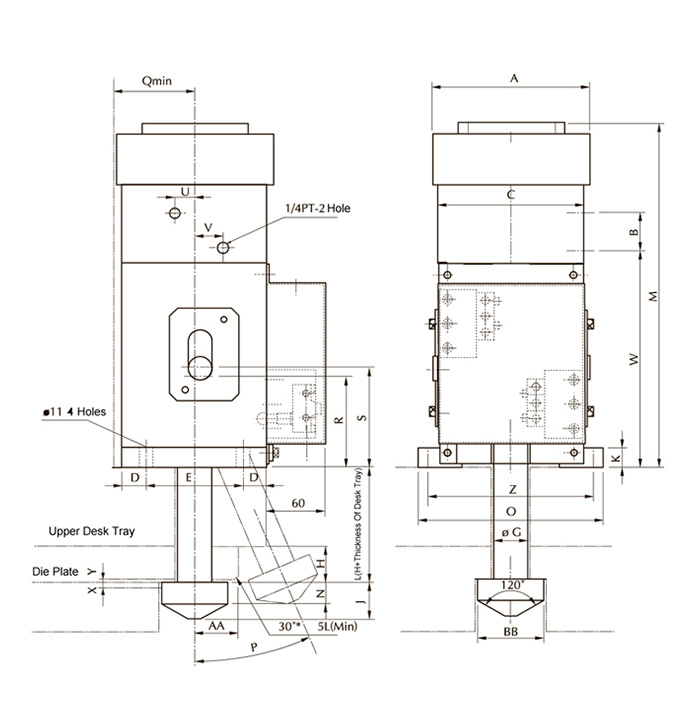

| Model | A | B | C | D | E | F | G | BB | Z | J | K | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TS-4 | 94 | 27.5 | 95 | 22.5 | 50 | 28 | 28 | 52 | 115 | 28 | 16 | 230 | 16 |
| TS-6 | 129 | 34.5 | 110 | 25 | 60 | 36 | 30 | 60 | 129 | 32 | 20 | 280 | 18 |
| TS-10 | 168 | 35.5 | 150 | 25 | 100 | 44 | 35 | 68 | 168 | 38 | 20 | 348 | 22 |
| Model | O | P | Q | R | S | T | U | V | W | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TS-4 | 135 | 24° | 55 | 55 | 60.5 | 55 | 15.5 | 19.5 | 143.5 | 5 | 2.5 |
| TS-6 | 150 | 21° | 70 | 68 | 75 | 70 | 11 | 19 | 178 | 5 | 2.5 |
| TS-10 | 190 | 36° | 85 | 93 | 102.5 | 85 | 21 | 29 | 226 | 6 | 3 |
