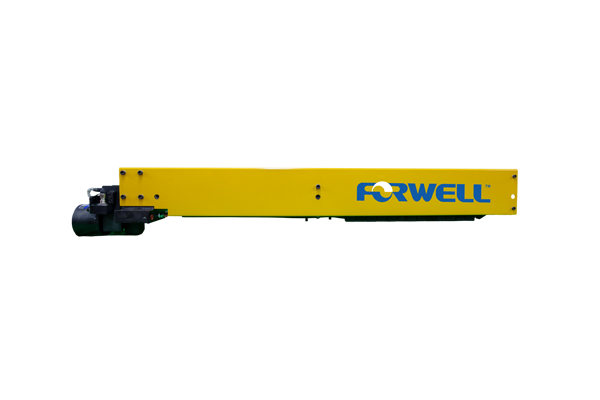

TAX Pneumatic Clamps
The TAX system uses an automatic pneumatic pressure mechanism to individually clamp upper dies. This system is well suited for both smaller and larger hydraulic presses.
Product Codes
| Clamp | F | N | P |
|---|---|---|---|
| TAX-4 | 68 | 68 | 24 |
| TAX-6 | 78 | 73 | 16 |
| TAX-10 | 98 | 79 | 6 |
Diagrams

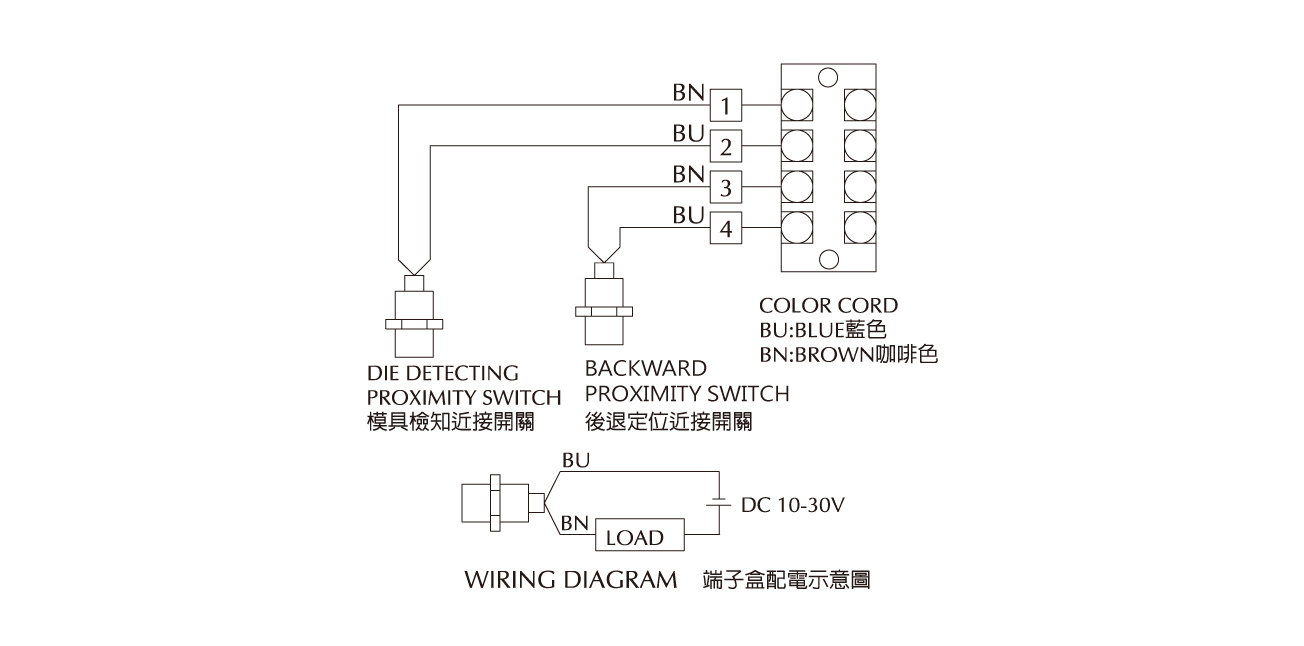

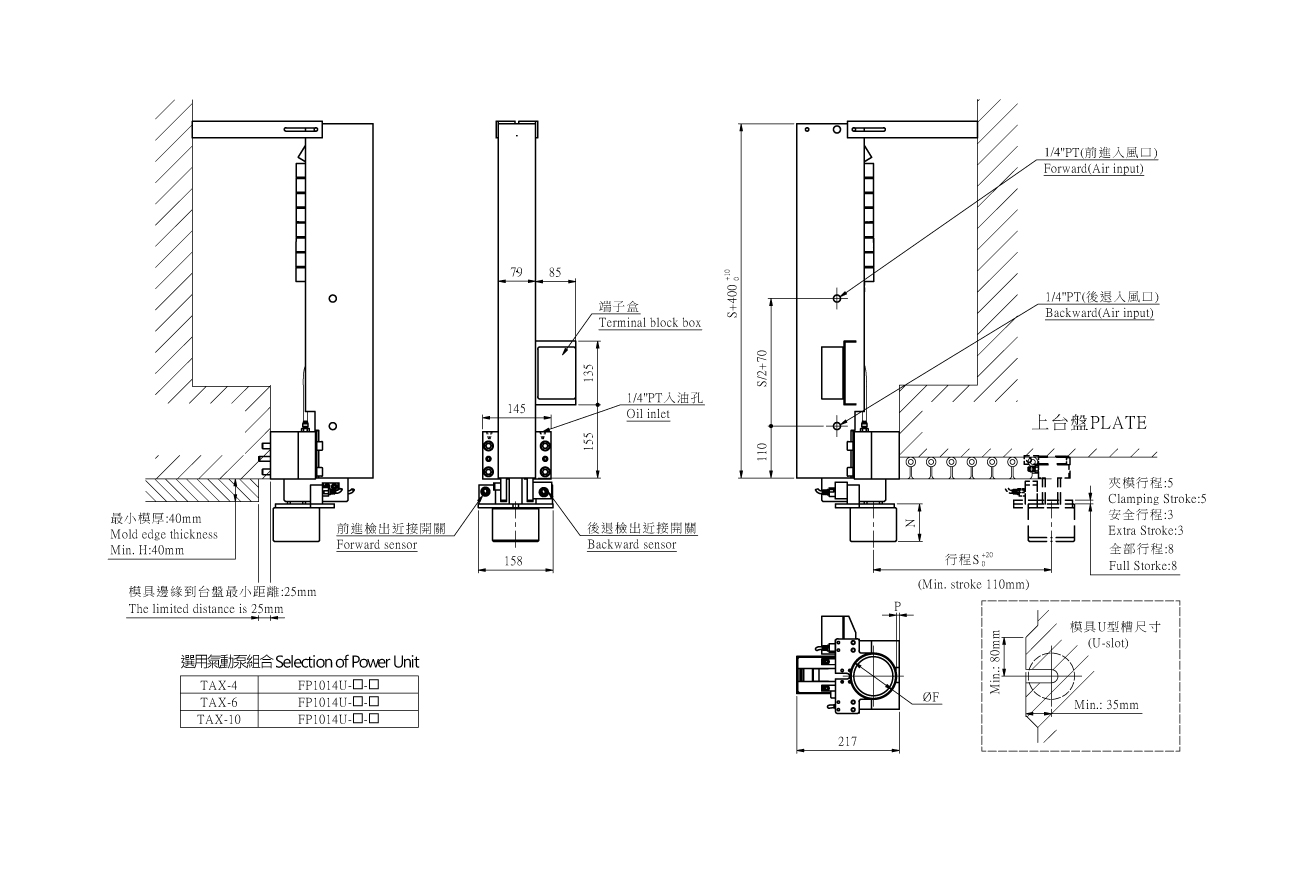

| WIRING DIAGRAM | T-SLOT DIMENSIONS |
